Chemical storage requirements affect tank design and daily operations. Facilities often upgrade existing tanks when regulations change or inspections reveal damage.
A successful upgrade requires more than a basic repair. Facility leaders must evaluate the complete storage system and select materials that match the chemical service. If you’re planning a tank upgrade, here are the basics of how facilities upgrade for chemical storage compliance to familiarize yourself with.
Identify the Applicable Storage Requirements
No single regulation governs every chemical storage tank. Requirements vary based on the chemical and facility operation. Tank location can also affect applicable standards. Storage volume and waste classification may create added obligations.
Facilities may need to follow federal rules from the Environmental Protection Agency and the Occupational Safety and Health Administration. State agencies and local authorities may impose additional permit conditions.
OSHA requires employers to maintain a hazard communication program for hazardous chemicals. The program covers labels and safety data sheets. It also requires employee information and training.
Some operations that involve highly hazardous chemicals may fall under Process Safety Management requirements. These requirements address process information and mechanical integrity. They also cover hazard analysis and operating procedures.
Hazardous waste tanks may require secondary containment under Resource Conservation and Recovery Act rules. EPA guidance recognizes external liners and double-wall tanks as possible containment approaches.
Facility leaders should confirm all applicable requirements before selecting an upgrade method. This review reduces the risk of solving one problem while leaving another compliance gap.
Assess the Existing Tank System

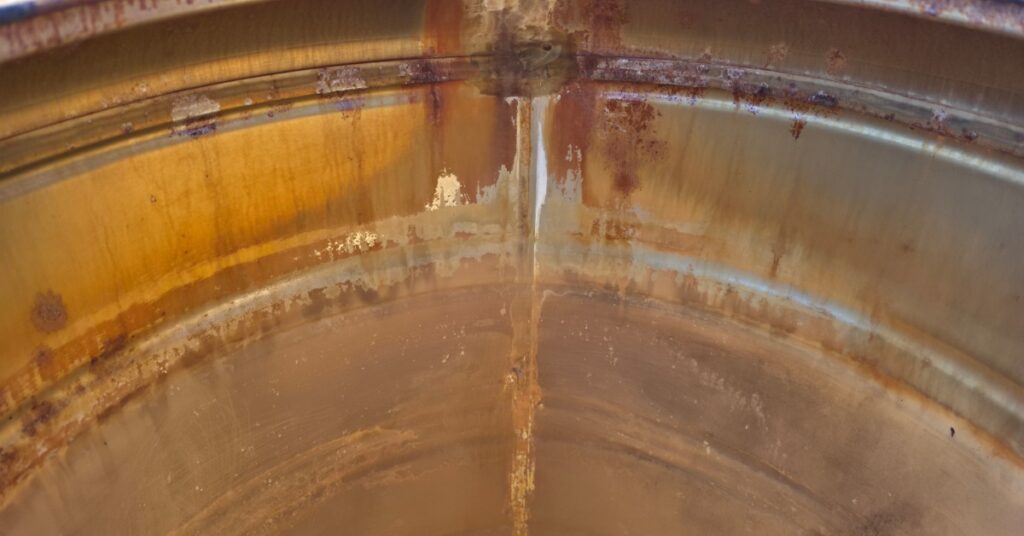

A tank upgrade should begin with a documented condition assessment. Inspectors should examine the tank shell and floor. The review should also cover the roof and supports. Nozzles and fittings require close attention because these areas can develop leaks.
Inspectors should look for corrosion and chemical attack. They should document cracks and surface deterioration.
Coating failure may indicate that the current barrier cannot handle the stored material. Distortion or visible leakage may point to a structural problem.
Inspection methods depend on the tank design. Visual inspections can reveal accessible surface damage. Thickness testing can measure metal loss. Spark testing can identify some defects in nonconductive lining systems.
The assessment must extend beyond the tank body. Piping and valves can create significant release risks. Pumps and transfer connections also require inspection. Vents and level controls should function as designed.
Maintenance records provide useful context during the assessment. Teams should review previous repairs and inspection findings.
Confirm Chemical Compatibility
Chemical compatibility drives every material decision. A liner designed for water service may not tolerate an aggressive acid.
The review should identify the exact chemical and concentration. Operating temperature can also affect liner performance. Facilities should consider normal exposure and possible process variations. Cleaning products may contact the liner during maintenance.
Chemical tank liners create a barrier between the stored product and tank substrate. The correct liner can reduce corrosion and protect the existing structure.
Selection should rely on documented compatibility information. Broad chemical categories do not provide enough detail for a reliable material decision.
Choose an Appropriate Upgrade Strategy
Tank condition and compliance goals determine the best upgrade method. Some tanks need a new liner while others require structural repairs. Replacement may offer the safest option when the tank has severe damage. A professional assessment should guide that decision.
A liner may provide a practical solution when the tank retains adequate structural strength. The liner separates the chemical from the original tank surface.
Flexible drop-in liners can support many tank shapes. They can also work with surfaces that make bonded coating installation difficult.
Bonded systems may suit tanks with properly prepared substrates. Installation requirements will depend on the selected material and tank design.
A complete storage upgrade may include these actions:
- Repair damaged tank surfaces
- Install a compatible liner
- Replace worn seals
- Add leak detection
- Improve overflow controls
- Repair secondary containment
Each component must support the complete storage system. A new liner cannot correct a damaged valve or an inadequate vent.
Upgrade Secondary Containment
Secondary containment helps control a release after the primary tank fails. The system may use a lined basin or vault. Some facilities use a double-wall tank. Others rely on containment walls with a compatible floor liner.
EPA regulations require secondary containment for certain regulated tank systems. The exact design depends on the stored material and applicable rule.
Hazardous waste containment must use materials that remain compatible with the stored waste. The system must have enough strength to resist operating stresses.
Secondary containment liners need the same compatibility review as tank liners. A spill may expose the liner to concentrated chemical product.
Add Monitoring and Overfill Protection
Compliance upgrades should reduce the risk of an unnoticed release. Monitoring systems can provide early warning when a tank or liner develops a problem. Leak detection options include sump sensors and interstitial monitoring. The right approach depends on the tank configuration.
High-level alarms can warn operators before an overfill occurs. Automatic shutoff systems may provide added protection for suitable processes. Alarm settings must provide enough response time. Facility procedures should identify who receives the alarm and what action follows.
Overfill protection also requires reliable operating practices. Operators should confirm available tank capacity before starting each transfer.
Staff should monitor the fill until completion. Written procedures can reduce uncertainty during routine or unusual operations.
Prepare the Tank for Liner Installation
Installation planning protects liner quality and limits operational disruption. The project plan should define isolation and cleaning requirements.
Crews must remove chemical residue before liner work begins. The tank must meet all applicable safety conditions for internal access. Surface preparation depends on the liner system. A drop-in liner may require a smooth surface that cannot puncture the material.
Accurate tank measurements support a proper fit. Custom fabrication can address internal columns and unusual tank geometry.
Penetrations require special attention during installation. Boots and mechanical seals must create liquid tight connections. Flange details should match the chemical service. Installation crews must also prevent stress around outlets or fittings.
Test the Completed Upgrade
Testing confirms that the upgraded system meets project requirements. The testing method should reflect the liner material and tank design. A visual inspection can identify folds or incomplete seals. It can also reveal damage that occurred during installation.
Spark testing may locate pinholes in some lining systems. The liner manufacturer should define the correct test settings. Hydrostatic testing can confirm liquid tight performance when the tank design permits. Other systems may require vacuum testing or controlled leak checks.
Testing must include monitoring devices and alarms. Teams should verify alarm signals and shutdown functions.
Any defect requires correction before the tank returns to service. Final approval should rely on documented results.
Upgrade Chemical Storage With Royal Liner
Royal Liner produces custom liner systems for chemical storage and water treatment applications. Each system accounts for tank dimensions and chemical service conditions.
Proper liner selection and understanding chemical storage compliance upgrades can support safer storage and more reliable tank performance. Contact Royal Liner to discuss custom tank liners and secondary containment products for a planned compliance upgrade.
